SubWindow

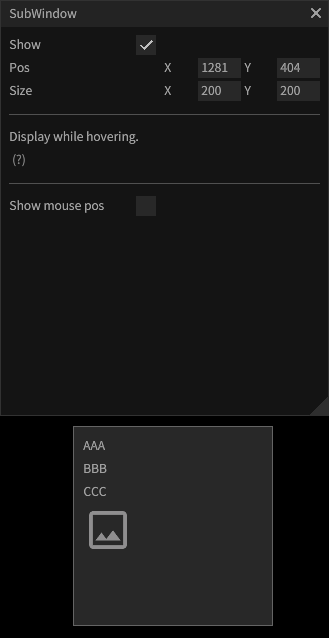

A SubWindow is a child-like window associated with a Window.
Multiple SubWindows can be linked to a single Window.

See the SubWindowDemo.cs.

using Gridrand.Contracts;
using Gridrand.RimGui.Manual.Utility;
namespace Gridrand.RimGui.Manual
{
    /// <summary>
    /// Demonstrates the usage of sub-windows in the GUI.
    /// A SubWindow is a child-like window associated with a Window.
    /// Multiple SubWindows can be linked to a single Window.
    /// </summary>
    class SubWindowDemo : ManualBase, IManual
    {
        bool show;
        bool showMousePos;

        static readonly Gridrand.Contracts.Rendering.TextStyle textStyle = new();

        Vector2Int subWindow1Pos = new(300, 300);
        Vector2Int subWindow1Size = new(200, 200);

        public SubWindowDemo(ManualBaseResource p) : base(p)
        {
            // Setting the text color range for the style
            textStyle.Insert(new RangeColor(Color.Gray, 0..5));
        }

        public void Draw()
        {
            // UI to control the visibility of the first sub-window
            Gui.LabelInput("Show", ref show);
            Gui.LabelInput("Pos", ref subWindow1Pos);
            Gui.LabelInput("Size", ref subWindow1Size);

            if (show)
            {
                // Layout the sub-window with the specified position and size
                using (Style.SubWindow.BeginLayout(subWindow1Pos, subWindow1Size))
                {
                    // Begins a SubWindow.
                    if (Gui.BeginSubWindow("Demo"))
                    {
                        Gui.Text("AAA");
                        Gui.Text("BBB");
                        Gui.Text("CCC");
                        Gui.TextColorTexture(Assets.SampleTexture);

                        // Must be executed if BeginSubWindow() returns true.
                        Gui.EndSubWindow();
                    }
                }
            }

            Gui.Separator();
            Gui.Text("Display while hovering.");

            // Apply the text style for the tooltip display
            using (Style.Text.Styles.Begin(textStyle))
                Gui.NextTextWidth(" (?) ").Text(" (?) ");

            // Check if the mouse pointer is over the last widget and show a tooltip sub-window if true
            if (Gui.Context.IsValidPointerIn(Gui.Context.GetLastWidgetRect()))
            {
                // Position and layout the tooltip sub-window based on the mouse position
                using (Style.SubWindow.BeginAutoSizeLayout(Input.Pointer.Pos + new Vector2(15, -15), new Vector2(400, 400)))
                {
                    if (Gui.BeginSubWindow("Demo"))
                    {
                        Gui.NextTextWidth("Tooltip").Text("Tooltip");
                        Gui.EndSubWindow();
                    }
                }
            }

            Gui.Separator();
            Gui.LabelInput("Show mouse pos", ref showMousePos);

            if (showMousePos)
            {
                // Position and layout the sub-window near the mouse position
                using (Style.SubWindow.BeginAutoSizeLayout(Input.Pointer.Pos + new Vector2(15, -15), new Vector2(200, 200)))
                {
                    if (Gui.BeginSubWindow("Demo"))
                    {
                        var mousePosStr = Input.Pointer.Pos.ToString();
                        Gui.NextTextWidth(mousePosStr).Text($"{mousePosStr}");
                        Gui.EndSubWindow();
                    }
                }
            }
        }
    }
}
