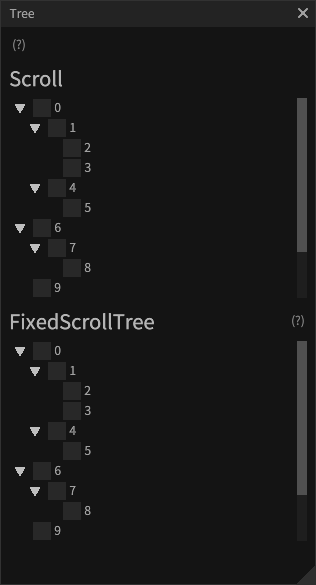

Tree

See the TreeDemo.cs.

using Gridrand.Contracts;
using Gridrand.Contracts.InputSystem;
using Gridrand.RimGui.Extensions;
using Gridrand.RimGui.Manual.Utility;
using System.Collections.Generic;
namespace Gridrand.RimGui.Manual
{
    /// <summary>
    /// This is a demo of <see cref="Gui.Tree{TNode}(IEnumerable{TNode}, TreeDrawingBundle{TNode}, Rect?, int)"/> and
    /// <see cref="Gui.FixedScrollTree{TNode}(float, IEnumerable{TNode}, TreeDrawingBundle{TNode}, int)"/>.
    /// </summary>
    class TreeDemo : ManualBase, IManual
    {
        // Scrollable tree structure data.
        readonly List<Node> scrollRoots = new();
        readonly ItemSelection<Node> scrollSelection = new();

        // Fixed-size scrollable tree structure data.
        readonly List<Node> fixedScrollRoots = new();
        readonly ItemSelection<Node> fixedScrollSelection = new();

        // Handlers for node interactions and rendering.
        readonly NodeHandler nodeHandler;
        readonly NodeHandler fixedScrollNodeHandler;
        readonly NodeDrawer nodeDrawer;

        public TreeDemo(ManualBaseResource p) : base(p)
        {
            nodeDrawer = new NodeDrawer(Gui);
            nodeHandler = new NodeHandler(Input);
            fixedScrollNodeHandler = new NodeHandler(Input);

            BuildTree(scrollRoots, scrollSelection);
            BuildTree(fixedScrollRoots, fixedScrollSelection);

            foreach (var n in scrollRoots)
                nodeHandler.SetOpenRecursively(n, true);

            foreach (var n in fixedScrollRoots)
                fixedScrollNodeHandler.SetOpenRecursively(n, true);

            static void BuildTree(List<Node> roots, ItemSelection<Node> selection)
            {
                var n = 0;

                roots.Add(new Node() { Name = ProcessName(ref n) }
                .AddChildren(
                    new Node() { Name = ProcessName(ref n) }
                    .AddChildren(
                        new Node() { Name = ProcessName(ref n) },
                        new Node() { Name = ProcessName(ref n) }),
                    new Node() { Name = ProcessName(ref n) }
                    .AddChildren(new Node() { Name = ProcessName(ref n) })));


                roots.Add(new Node() { Name = ProcessName(ref n) }
                .AddChildren(
                    new Node() { Name = ProcessName(ref n) }
                    .AddChildren(
                        new Node() { Name = ProcessName(ref n) })));

                roots.Add(new Node() { Name = ProcessName(ref n) });
                roots.Add(new Node() { Name = ProcessName(ref n) });
                roots.Add(new Node() { Name = ProcessName(ref n) });
                roots.Add(new Node() { Name = ProcessName(ref n) });

                selection.Select(roots[0]);
                selection.Select(roots[1]);

            }
            static string ProcessName(ref int number)
            {
                var result = number;
                number++;
                return result.ToString();
            }
        }

        public void Draw()
        {
            Gui.ToolTip("By holding down the Alt key while clicking triangle icon, you can open / close all child elements.");

            Gui.Heading("Scroll");
            {
                // Set SpacingY to 0 within this scope.
                using var s = Style.SpacingYs.Begin(0f);
                Gui.NextHeight(200f);
                // Render a scrollable tree.
                if (Gui.BeginScroll())
                {
                    Gui.Tree(scrollRoots, new(nodeDrawer, scrollSelection, nodeHandler), Ctx.GetWidgetRect());

                    Gui.EndScroll();
                }
            }

            Gui.HeadingTooltip(
                "FixedScrollTree",
                "It only processes the displayed nodes, making it fast even when there are many.");
            {
                using var s = Style.SpacingYs.Begin(0f);
                // Render a fixed-size scrollable tree.
                Gui.FixedScrollTree(200f, fixedScrollRoots, new(nodeDrawer, fixedScrollSelection, fixedScrollNodeHandler));
            }
        }

        /// <summary>
        /// Represents a node in the tree structure.
        /// </summary>
        class Node
        {
            public bool IsCheck { get; set; }
            public string Name { get; set; }
            public List<Node> Children { get; private set; } = new();
            public bool HasChild => 0 < Children.Count;

            public Node AddChildren(params Node[] children)
            {
                Children.AddRange(children);
                return this;
            }
        }

        /// <summary>
        /// Handles rendering of tree nodes.
        /// </summary>
        class NodeDrawer : ITreeNodeDrawer<Node>
        {
            readonly Gui ui;

            public NodeDrawer(Gui ui)
            {
                this.ui = ui;
            }

            /// <summary>
            /// Draws a tree node.
            /// </summary>
            /// <param name="node">The node to draw.</param>
            /// <param name="rect">The rectangle area allocated for the node.</param>
            public void Draw(Node node, Rect rect)
            {
                // note:Unscaled because the scale has already been taken into account.
                using var rects = ui.LayoutBuilder.FixedUnscaled(rect.height).Fit(1).BuildHorizontal(rect);
                var isCheck = node.IsCheck;
                ui.NextRect(rects.R0).CheckBox(ref isCheck);
                node.IsCheck = isCheck;
                ui.NextRect(rects.R1).Text(node.Name);
            }
        }

        /// <summary>
        /// Handles tree node interactions, such as expanding and selecting nodes.
        /// </summary>
        class NodeHandler : TreeNodeHandlerBase<Node>
        {
            public NodeHandler(IInputContext input) : base(input)
            {
            }
            public override IEnumerable<Node> GetChildren(Node node) => node.Children;
        }
    }

}
