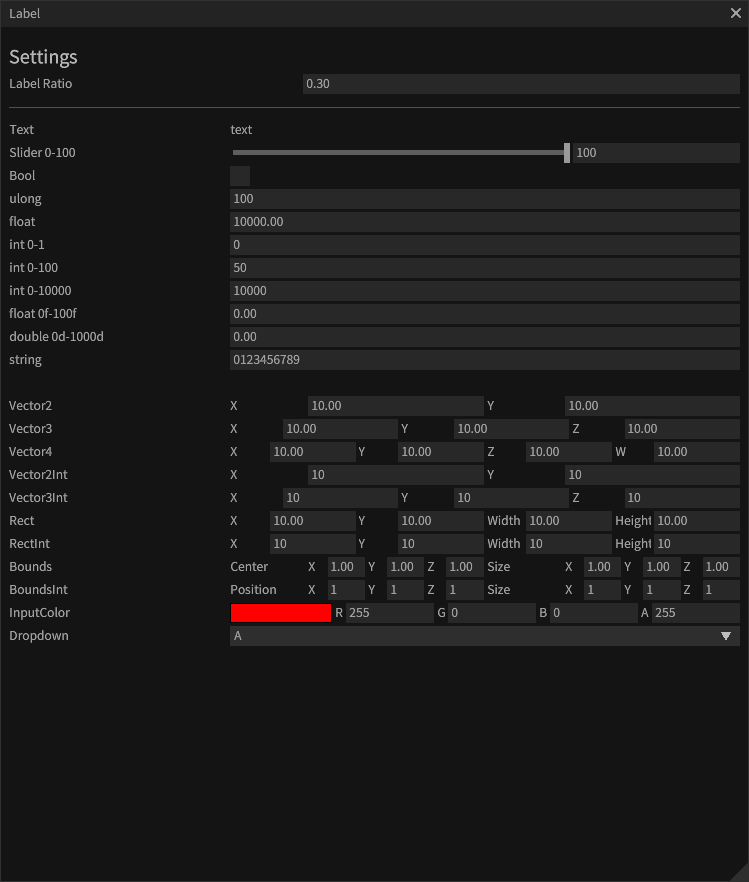

Label

See the LabelDemo.cs.

using Gridrand.Contracts;
namespace Gridrand.RimGui.Manual
{
    /// <summary>
    /// Demonstrates various labeled elements such as sliders, numeric inputs, text inputs, dropdowns, and color pickers.
    /// </summary>
    class LabelDemo : ManualBase, IManual
    {
        // Ratio for label size in label-input UI components
        float labelRatio = 0.3f;

        bool boolValue;
        int sliderIntValue = 100;
        int numericIntValue = 100;
        float numericFloatValue = 10000f;
        int intValue1;
        int intValue2 = 50;
        int intValue3 = 10000;
        float floatValue;
        double doubleValue;
        string stringValue = "0123456789";
        SampleEnum sampleEnum;
        Color32 color = Color32.Red;

        Vector2 v2 = new(10f, 10f);
        Vector3 v3 = new(10f, 10f, 10f);
        Vector4 v4 = new(10f, 10f, 10f, 10f);
        Vector2Int v2Int = new(10, 10);
        Vector3Int v3Int = new(10, 10, 10);
        Rect rect = new(10, 10, 10, 10);
        RectInt rectInt = new(10, 10, 10, 10);
        Bounds bounds = new(Vector3.One, Vector3.One);
        BoundsInt boundsInt = new(Vector3Int.One, Vector3Int.One);

        public LabelDemo(ManualBaseResource p) : base(p)
        {
        }

        public void Draw()
        {
            Gui.Heading("Settings");

            // Input for adjusting the label-to-input ratio
            using (Ranges.BeginFloat(0.1f, 0.9f))
                Gui.LabelInputNumeric("Label Ratio", ref labelRatio);

            // Apply label size ratio to all labeled inputs
            using var s = Style.LabelSizes.Begin(Size.Ratio(labelRatio));

            Gui.Separator();

            // Various labeled UI components
            Gui.LabelText("Text", "text");
            Gui.LabelSliderNumeric("Slider 0-100", ref sliderIntValue, 0, 100);
            Gui.LabelInput("Bool", ref boolValue);
            Gui.LabelInputNumeric("ulong", ref numericIntValue);
            Gui.LabelInputNumeric("float", ref numericFloatValue);

            using (Ranges.BeginInt(0, 1))
                Gui.LabelInputNumeric("int 0-1", ref intValue1);
            using (Ranges.BeginInt(0, 100))
                Gui.LabelInputNumeric("int 0-100", ref intValue2);
            using (Ranges.BeginInt(0, 10000))
                Gui.LabelInputNumeric("int 0-10000", ref intValue3);
            using (Ranges.BeginFloat(0f, 100f))
                Gui.LabelInputNumeric("float 0f-100f", ref floatValue);
            using (Ranges.BeginDouble(0d, 1000d))
                Gui.LabelInputNumeric("double 0d-1000d", ref doubleValue);

            Gui.LabelInput("string", ref stringValue);

            Gui.Spacing();

            v2 = Gui.LabelInput("Vector2", v2);
            v3 = Gui.LabelInput("Vector3", v3);
            v4 = Gui.LabelInput("Vector4", v4);
            v2Int = Gui.LabelInput("Vector2Int", v2Int);
            v3Int = Gui.LabelInput("Vector3Int", v3Int);
            rect = Gui.LabelInput("Rect", rect);
            rectInt = Gui.LabelInput("RectInt", rectInt);
            bounds = Gui.LabelInput("Bounds", bounds);
            boundsInt = Gui.LabelInput("BoundsInt", boundsInt);

            Gui.LabelInput("InputColor", ref color);

            Gui.LabelDropdown("Dropdown", ref sampleEnum);
        }

        enum SampleEnum
        {
            A,
            B,
            C
        }
    }
}
