LayoutBuilder

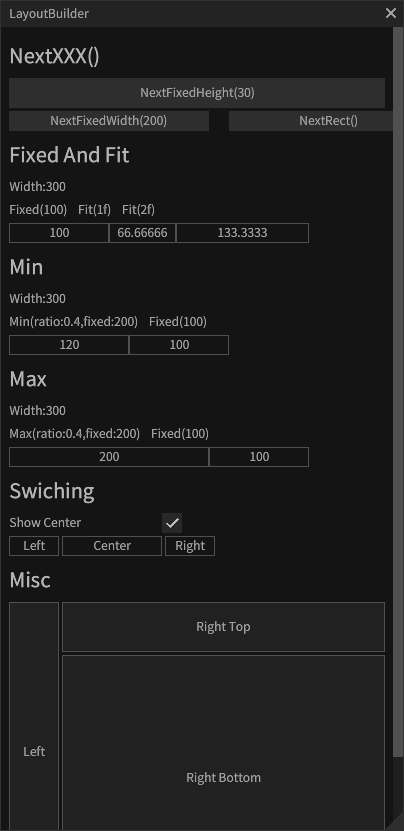

See the LayoutBuilderDemo.cs.

using Gridrand.RimGui.Manual.Utility;
namespace Gridrand.RimGui.Manual
{
    /// <summary>
    /// This is a <see cref="ILayoutBuilder"/> demo.
    ///
    /// When you want to render at a specific position, you can primarily use
    /// <see cref="Gui.LayoutBuilder"/> to generate a Rect and specify that Rect
    /// with <see cref="Gui.NextRect(Contracts.Rect)"/> to render the widget
    /// at the desired position.
    /// </summary>
    class LayoutBuilderDemo : ManualBase, IManual
    {
        bool showCheckBox = true;

        public LayoutBuilderDemo(ManualBaseResource p) : base(p)
        {
        }

        public void Draw()
        {
            Gui.Heading("NextXXX()");
            DrawNext();

            Gui.Heading("Fixed And Fit");
            DrawUsingFixedAndFit();

            Gui.Heading("Min");
            DrawUsingMin();

            Gui.Heading("Max");
            DrawUsingMax();

            Gui.Heading("Swiching");
            DrawSwitching();

            Gui.Heading("Misc");
            DrawMisc();
        }

        void DrawNext()
        {
            // Specify the height for the next widget
            Gui.NextHeight(30).Button("NextFixedHeight(30)");
            Gui.NextWidth(200).Button("NextFixedWidth(200)");

            var lastRect = Ctx.GetLastWidgetRect();
            // Specify the rect for the next widget.
            Gui.NextRect(lastRect.MoveX(220f)).Button("NextRect()");
        }

        void DrawSwitching()
        {
            Gui.LabelInput("Show Center", ref showCheckBox);

            using var rects = LayoutBuilder
                .Fixed(50f)
                // By passing a bool as an argument, you can toggle enable/disable.
                // Useful for dynamically changing layouts.
                .Fixed(100f, showCheckBox)
                .Fixed(50f)
                // Allocate horizontally
                .BuildAllocatedHorizontal();

            // By specifying the Rect for the next widget, the widget is rendered within that Rect.
            Gui.FrameText(rects.R0, "Left");

            if (showCheckBox)
                Gui.FrameText(rects.R1, "Center");

            Gui.FrameText(rects.R2, "Right");
        }
        void DrawUsingFixedAndFit()
        {
            // Fixed: A specified width
            // Fit: The remaining width is divided among other Fit elements. The argument represents the ratio relative to other Fits.

            const float width = 300f;
            using var s = Style.SpacingXs.Begin(0f);
            Gui.Text("Width:300");
            Gui.Text($"Fixed(100)    Fit(1f)    Fit(2f)");

            // Fixed is assigned 100,, and the remaining width is split between Fit with a 1:2 ratio.
            using var rects1 = LayoutBuilder.Fixed(100).Fit(1f).Fit(2f).BuildAllocatedHorizontal(width);
            Gui.FrameText(rects1.R0, $"{rects1.R0.width}");
            Gui.FrameText(rects1.R1, $"{rects1.R1.width}");
            Gui.FrameText(rects1.R2, $"{rects1.R2.width}");
        }
        void DrawUsingMin()
        {
            // Min: Uses the smaller value between the given ratio and fixed value.

            const float width = 300f;
            using var s = Style.SpacingXs.Begin(0f);
            Gui.Text("Width:300");
            Gui.Text($"Min(ratio:0.4,fixed:200)    Fixed(100)");

            // Since the total width is 300, ratio 0.4 results in 120, which is smaller than fixed 200, so Min is 120.
            using var rects1 = LayoutBuilder.Min(ratio: 0.4f, @fixed: 200).Fixed(100).BuildAllocatedHorizontal(width);
            Gui.FrameText(rects1.R0, $"{rects1.R0.width}");
            Gui.FrameText(rects1.R1, $"{rects1.R1.width}");
        }
        void DrawUsingMax()
        {
            // Max: Uses the larger value between the given ratio and fixed value.

            const float width = 300f;
            using var s = Style.SpacingXs.Begin(0f);
            Gui.Text("Width:300");
            Gui.Text($"Max(ratio:0.4,fixed:200)    Fixed(100)");

            // Since the total width is 300, ratio 0.4 results in 120, but fixed is 200, so Max is 200.
            using var rects2 = LayoutBuilder.Max(ratio: 0.4f, @fixed: 200).Fixed(100).BuildAllocatedHorizontal(width);
            Gui.FrameText(rects2.R0, $"{rects2.R0.width}");
            Gui.FrameText(rects2.R1, $"{rects2.R1.width}");
        }

        void DrawMisc()
        {
            // Building a horizontal layout with fixed and flexible sections.
            using var horiRects = LayoutBuilder
                .Fixed(50)
                .Fit(1)
                .BuildAllocatedHorizontal(height: 300f);

            Gui.FrameBoxText(horiRects.R0, "Left");

            // Right section, split into two parts (top and bottom)
            using var rightRects = LayoutBuilder
                .Fixed(50)
                .Fit(1)
                .BuildVertical(horiRects.R1);

            Gui.FrameBoxText(rightRects.R0, "Right Top");

            Gui.FrameBoxText(rightRects.R1, "Right Bottom");
        }
    }
}
