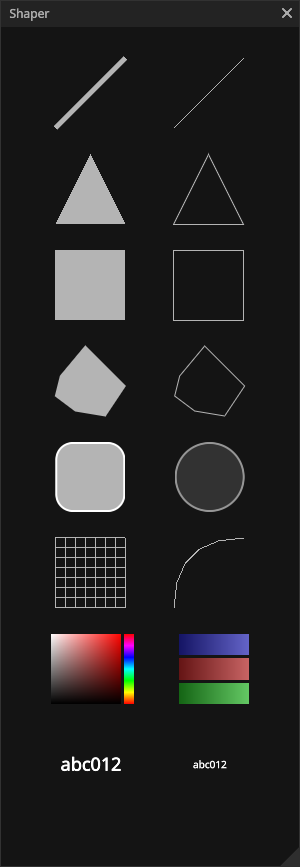

Shaper

shapre

See the ShaperDemo.cs.

using Gridrand.Contracts;
using Gridrand.Contracts.Rendering;
using System;

namespace Gridrand.RimGui.Manual
{
    /// <summary>
    /// <see cref="Shaper"/> demo.
    ///
    /// For <see cref="Gui.CustomDelegate(Action{Shaper, CustomDelegateWidget}, bool, int)"/>, please refer to <see cref="CustomDemo"/>
    /// </summary>
    class ShaperDemo : ManualBase, IManual
    {
        static readonly Color32 s_baseColor = new Color32(180, 180, 180, 255);

        readonly VerticesTextSettings textSettings1 = new();
        readonly VerticesTextSettings textSettings2 = new();

        // Bezier curve points
        readonly Vector3[] bezierPoints = new Vector3[3]
        {
            new(0f, 0f),
            new(0f, 70f),
            new(70f,70f)
        };

        // Anti-aliased closed line points
        readonly Vector2[] closedLineAAPoints = new Vector2[6]
        {
            new(0f, 20f),
            new(5f, 40f),
            new(30f, 70f),
            new(70f, 30f),
            new(50f, 0f),
            new(20f, 5f),
        };

        // Anti-aliased convex polygon points
        readonly Vector2[] convexPolygonAAPoints = new Vector2[6]
        {
            new(0f, 20f),
            new(5f, 40f),
            new(30f, 70f),
            new(70f, 30f),
            new(50f, 0f),
            new(20f, 5f),
        };

        public ShaperDemo(ManualBaseResource p) : base(p)
        {
            textSettings1.AlignmentX = AlignmentX.Center;
            textSettings2.AlignmentX = AlignmentX.Center;
        }

        public void Draw()
        {
            textSettings1.FontSize = 18f * Style.ScaleFactor;
            textSettings2.FontSize = 10f * Style.ScaleFactor;

            Gui.Spacing();
            DrawLines();
            Gui.Spacing();
            DrawTriangles();
            Gui.Spacing();
            DrawRects();
            Gui.Spacing();
            DrawPolygonAndClosedLine();
            Gui.Spacing();
            DrawStyledRects();
            Gui.Spacing();
            DrawGridAndBezierCurve();
            Gui.Spacing();
            DrawColors();
            Gui.Spacing();
            DrawTexts();
        }

        // Draws two diagonal lines: one anti-aliased, one without AA
        void DrawLines()
        {
            // Create a horizontal layout with padding and two fixed-width elements
            using var rects = LayoutBuilder.Fit(1f).Fixed(70f).Fit(1f).Fixed(70f).Fit(1f).BuildAllocatedHorizontal(height: 70f);

            // Draw an anti-aliased line with a thickness
            Gui.NextRect(rects.R1).CustomDelegate(
                Style.ScaleFactor,
                static (shaper, widget) =>
                {
                    var p = widget.Rect.Position;
                    ReadOnlySpan<Vector2> span = stackalloc Vector2[2]
                    {
                        p,
                        p + new Vector2(70f, 70f) * widget.State
                    };
                    shaper.AddLineAA(
                        span,
                        5f,
                        1f,
                        s_baseColor);
                },
                true);

            // Draw a non-AA line (sharp) from top-left to bottom-right
            Gui.NextRect(rects.R3).CustomDelegate(
                Style.ScaleFactor,
                static (shaper, widget) =>
                {
                    // Floor() for beautiful rendering
                    var p = new Vector2(MathF.Floor(widget.Rect.Position.x), MathF.Floor(widget.Rect.Position.y));
                    shaper.AddLine(
                        p,
                        p + new Vector2(70f, 70f) * widget.State,
                        1f,
                        s_baseColor);
                },
                true);
        }

        void DrawTriangles()
        {
            using var rects = LayoutBuilder.Fit(1f).Fixed(70f).Fit(1f).Fixed(70f).Fit(1f).BuildAllocatedHorizontal(height: 70f);

            Gui.NextRect(rects.R1).CustomDelegate(
                static (shaper, widget) =>
                {
                    var rect = widget.Rect;
                    var p = widget.Rect.Position;
                    shaper.AddTriangle(
                        rect.BL,
                        new Vector2(rect.Center.x, rect.YMax),
                        rect.BR,
                        s_baseColor,
                        s_baseColor,
                        s_baseColor);
                },
                true);
            Gui.NextRect(rects.R3).CustomDelegate(
                static (shaper, widget) =>
                {
                    // Floor() for beautiful rendering
                    var p = widget.Rect.Position.Floor() - Vector2.One / 2f;
                    var rect = widget.Rect;
                    ReadOnlySpan<Vector2> span = stackalloc Vector2[4]
                    {
                            p,
                            p+new Vector2(rect.width/2f,rect.height),
                            p+new Vector2(rect.width, 0f),
                            p,
                    };
                    shaper.AddLineAA(
                        span,
                        1f,
                        1f,
                        s_baseColor);
                },
                true);
        }
        void DrawRects()
        {
            using var rects = LayoutBuilder.Fit(1f).Fixed(70f).Fit(1f).Fixed(70f).Fit(1f).BuildAllocatedHorizontal(height: 70f);
            Gui.NextRect(rects.R1).CustomDelegate(
                static (shaper, widget) =>
                {
                    shaper.AddRect(widget.Rect, s_baseColor);
                },
                true);

            Gui.NextRect(rects.R3).CustomDelegate(
                static (shaper, widget) =>
                {
                    Span<Vector2> points = stackalloc Vector2[4];
                    // Floor() for beautiful rendering
                    points[0] = widget.Rect.BL.Floor() - Vector2.One / 2f;
                    points[1] = widget.Rect.BR.Floor() - Vector2.One / 2f;
                    points[2] = widget.Rect.TR.Floor() - Vector2.One / 2f;
                    points[3] = widget.Rect.TL.Floor() - Vector2.One / 2f;

                    shaper.AddClosedLineAA(points, 1f, 0.5f, s_baseColor);
                },
                true);
        }
        void DrawPolygonAndClosedLine()
        {
            using var rects = LayoutBuilder.Fit(1f).Fixed(70f).Fit(1f).Fixed(70f).Fit(1f).BuildAllocatedHorizontal(height: 70f);


            Gui.NextRect(rects.R1).CustomDelegate(
                convexPolygonAAPoints,
                Style.ScaleFactor,
                static (shaper, widget) =>
                {
                    using var points = PooledArray<Vector2>.Rent(widget.State1.Length);

                    var localPoints = widget.State1;
                    var scale = widget.State2;
                    for (int i = 0; i < localPoints.Length; i++)
                    {
                        points[i] = widget.Rect.Position + localPoints[i] * scale;
                    }
                    shaper.AddConvexPolygonAA(points.AsSpan(), 1f, s_baseColor);
                },
                true);

            Gui.NextRect(rects.R3).CustomDelegate(
                closedLineAAPoints,
                Style.ScaleFactor,
                static (shaper, widget) =>
                {
                    using var points = PooledArray<Vector2>.Rent(widget.State1.Length);

                    var localPoints = widget.State1;
                    var scale = widget.State2;
                    for (int i = 0; i < localPoints.Length; i++)
                    {
                        points[i] = widget.Rect.Position + localPoints[i] * scale;
                    }
                    shaper.AddClosedLineAA(points.AsSpan(), 1f, 1f, s_baseColor);
                },
                true);
        }
        void DrawStyledRects()
        {
            using var rects = LayoutBuilder.Fit(1f).Fixed(70f).Fit(1f).Fixed(70f).Fit(1f).BuildAllocatedHorizontal(height: 70f);

            Gui.NextRect(rects.R1).CustomDelegate(
                static (shaper, widget) =>
                {
                    var p = widget.Rect.Position;
                    shaper.AddStyledRect(
                        widget.Rect,
                        2f,
                        widget.Rect.height / 4f,
                        s_baseColor,
                        Color32.White);
                },
                true);
            Gui.NextRect(rects.R3).CustomDelegate(
                static (shaper, widget) =>
                {
                    var p = widget.Rect.Position;
                    shaper.AddStyledRect(
                        widget.Rect,
                        2f,
                        widget.Rect.height / 2f,
                        new Color32(50, 50, 50, 255),
                        new Color32(150, 150, 150, 255));
                },
                true);
        }
        void DrawGridAndBezierCurve()
        {
            using var rects = LayoutBuilder.Fit(1f).Fixed(70f).Fit(1f).Fixed(70f).Fit(1f).BuildAllocatedHorizontal(height: 70f);

            Gui.NextRect(rects.R1).CustomDelegate(
                Style.ScaleFactor,
                static (shaper, widget) =>
                {
                    shaper.AddGrid(
                        new Grid(
                        7,
                        7,
                        10 * widget.State,
                        10 * widget.State),
                        widget.Rect.Position,
                        1f,
                        s_baseColor);
                },
                true);

            Gui.NextRect(rects.R3).CustomDelegate(
                5,
                bezierPoints,
                Style.ScaleFactor,
                static (shaper, widget) =>
                {
                    using var points = PooledArray<Vector3>.Rent(widget.State2.Length);
                    // Floor() for beautiful rendering
                    var p = (Vector3)widget.Rect.Position.Floor();

                    var localPoints = widget.State2;
                    for (int i = 0; i < localPoints.Length; i++)
                    {
                        points[i] = p + localPoints[i] * widget.State3;
                    }

                    shaper.AddBezierCurve(
                        points.AsSpan(),
                        widget.State1,
                        1f,
                        s_baseColor);
                },
                true);
        }
        void DrawColors()
        {
            using var rects = LayoutBuilder.Fit(1f).Fixed(70f).Fixed(10f).Fit(1f).Fixed(70f).Fit(1f).BuildAllocatedHorizontal(height: 70f);

            Gui.NextRect(rects.R1).CustomDelegate(
                static (shaper, widget) =>
                {
                    shaper.AddSVPanel(widget.Rect, 1d);
                },
                true);

            Gui.NextRect(rects.R2).CustomDelegate(
                static (shaper, widget) =>
                {
                    shaper.AddHueBar(widget.Rect);
                },
                true);

            Ctx.AddSpaceIfNeeded();

            using var rects2 = LayoutBuilder.Fit(1f).Fit(1f).Fit(1f).BuildVertical(rects.R4);

            Gui.NextRect(rects2.R0).CustomDelegate(
                static (shaper, widget) =>
                {
                    var left = new Color32(20, 20, 100, 255);
                    var right = new Color32(100, 100, 200, 255);
                    shaper.AddGradient(widget.Rect, left, right, left, right);
                },
                true);
            Gui.NextRect(rects2.R1).CustomDelegate(
                static (shaper, widget) =>
                {
                    var left = new Color32(100, 20, 20, 255);
                    var right = new Color32(200, 100, 100, 255);
                    shaper.AddGradient(widget.Rect, left, right, left, right);
                },
                true);
            Gui.NextRect(rects2.R2).CustomDelegate(
                static (shaper, widget) =>
                {
                    var left = new Color32(20, 100, 20, 255);
                    var right = new Color32(100, 200, 100, 255);
                    shaper.AddGradient(widget.Rect, left, right, left, right);
                },
                true);
        }
        void DrawTexts()
        {
            using var rects = LayoutBuilder.Fit(1f).Fixed(70f).Fit(1f).Fixed(70f).Fit(1f).BuildAllocatedHorizontal(height: 70f);

            Gui.NextRect(rects.R1).CustomDelegate(
                textSettings1,
                static (shaper, widget) =>
                {
                    shaper.AddText(widget.Rect, "abc012", widget.State);
                },
                true);

            Gui.NextRect(rects.R3).CustomDelegate(
                textSettings2,
                static (shaper, widget) =>
                {
                    shaper.AddText(widget.Rect, "abc012", widget.State);
                },
                true);
        }
    }
}
